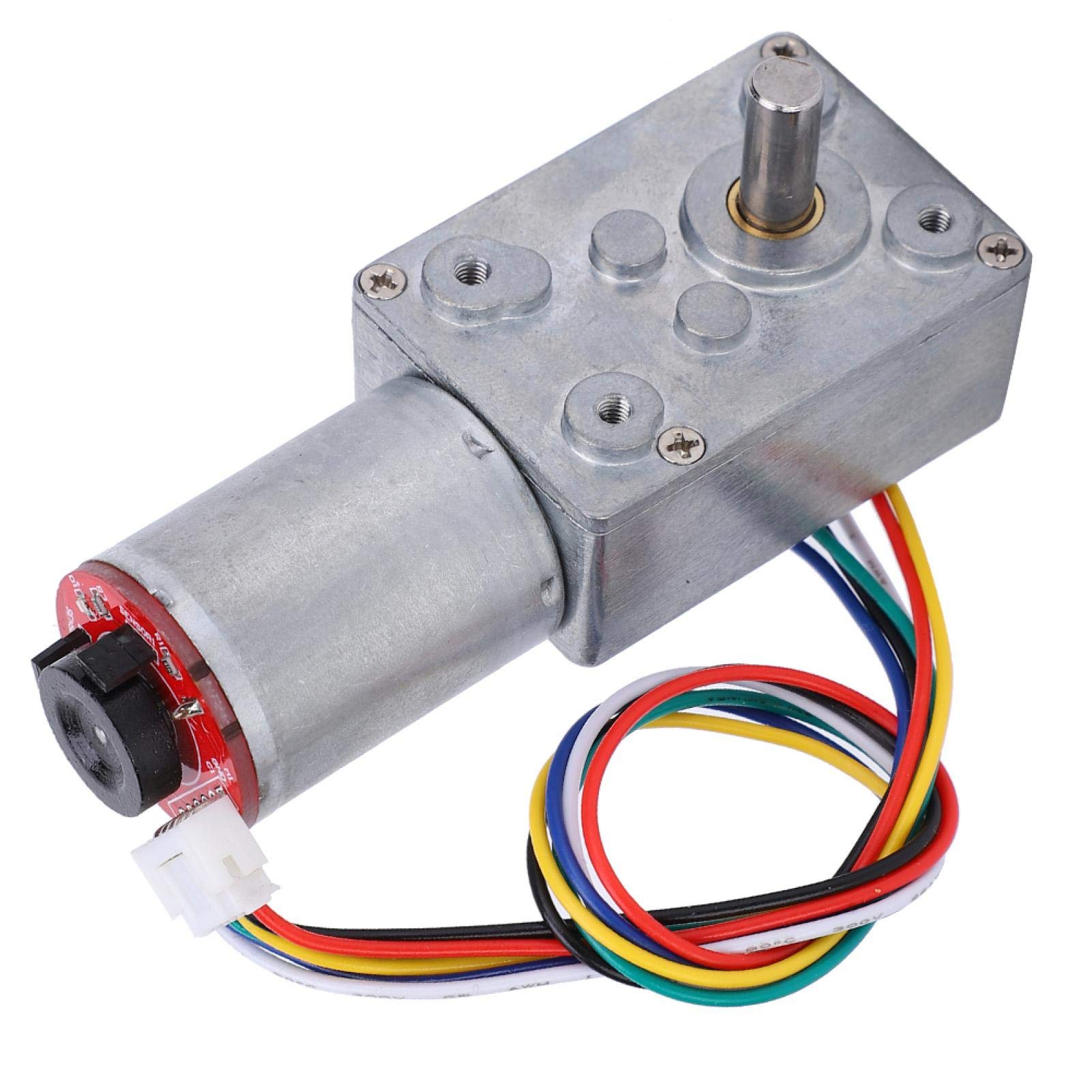

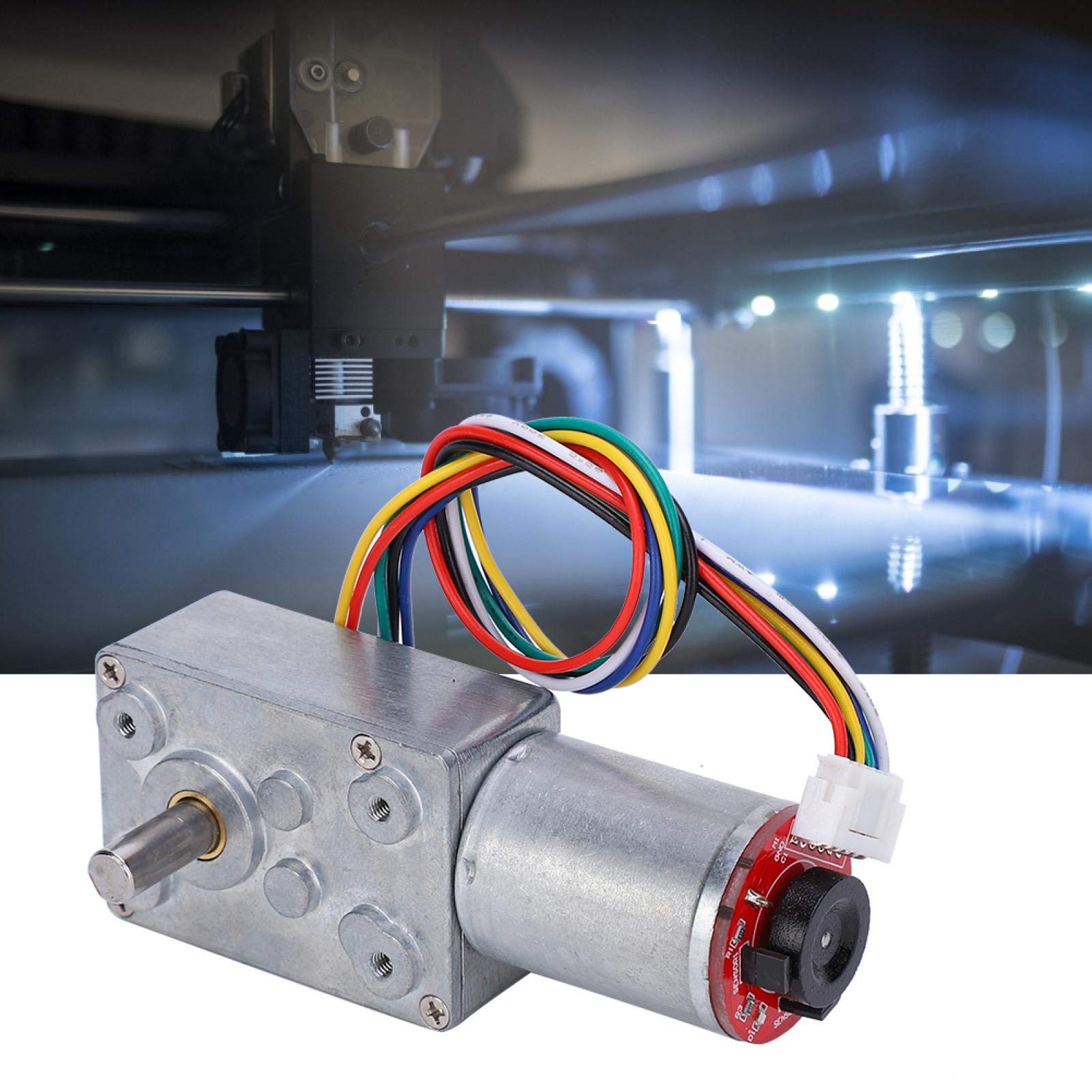

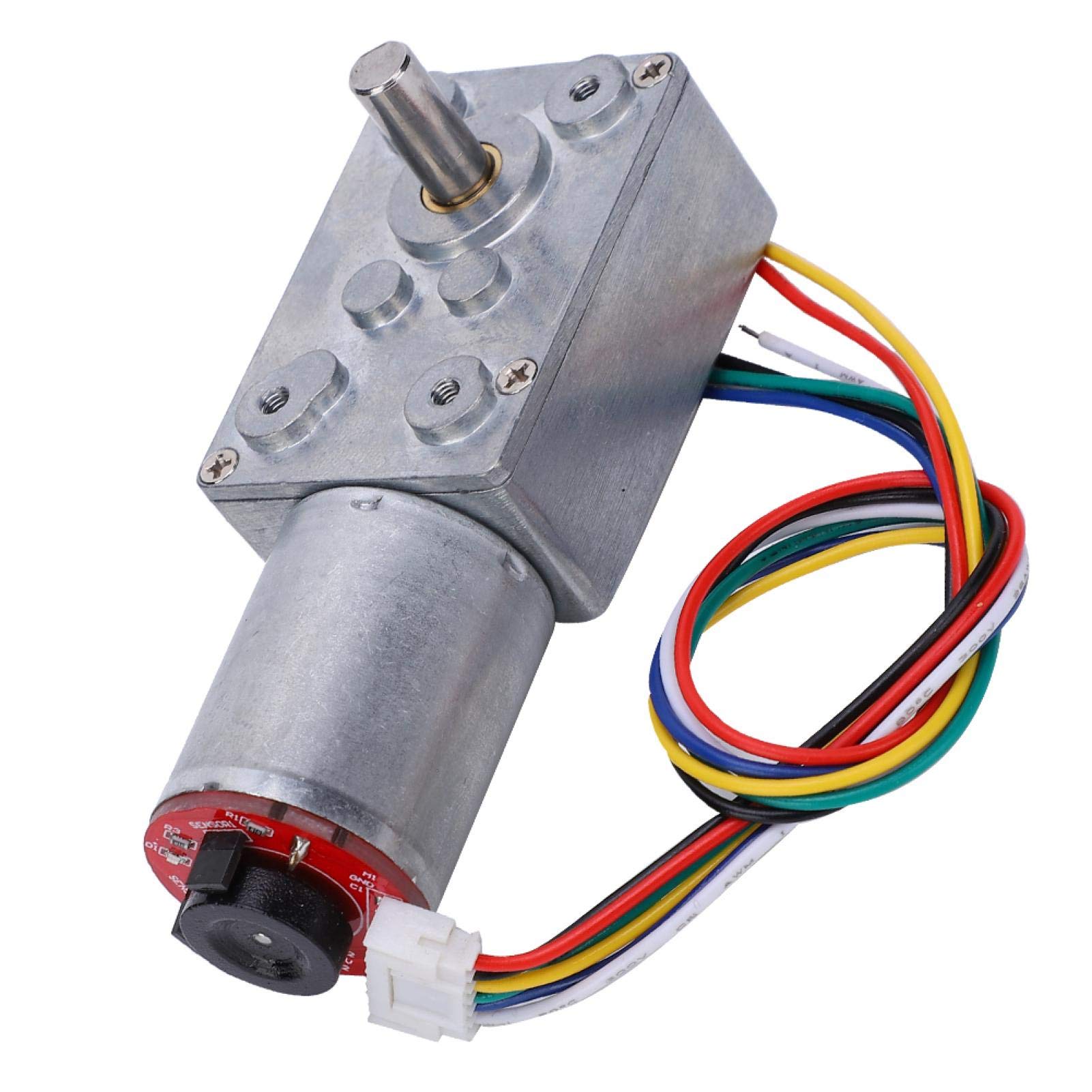

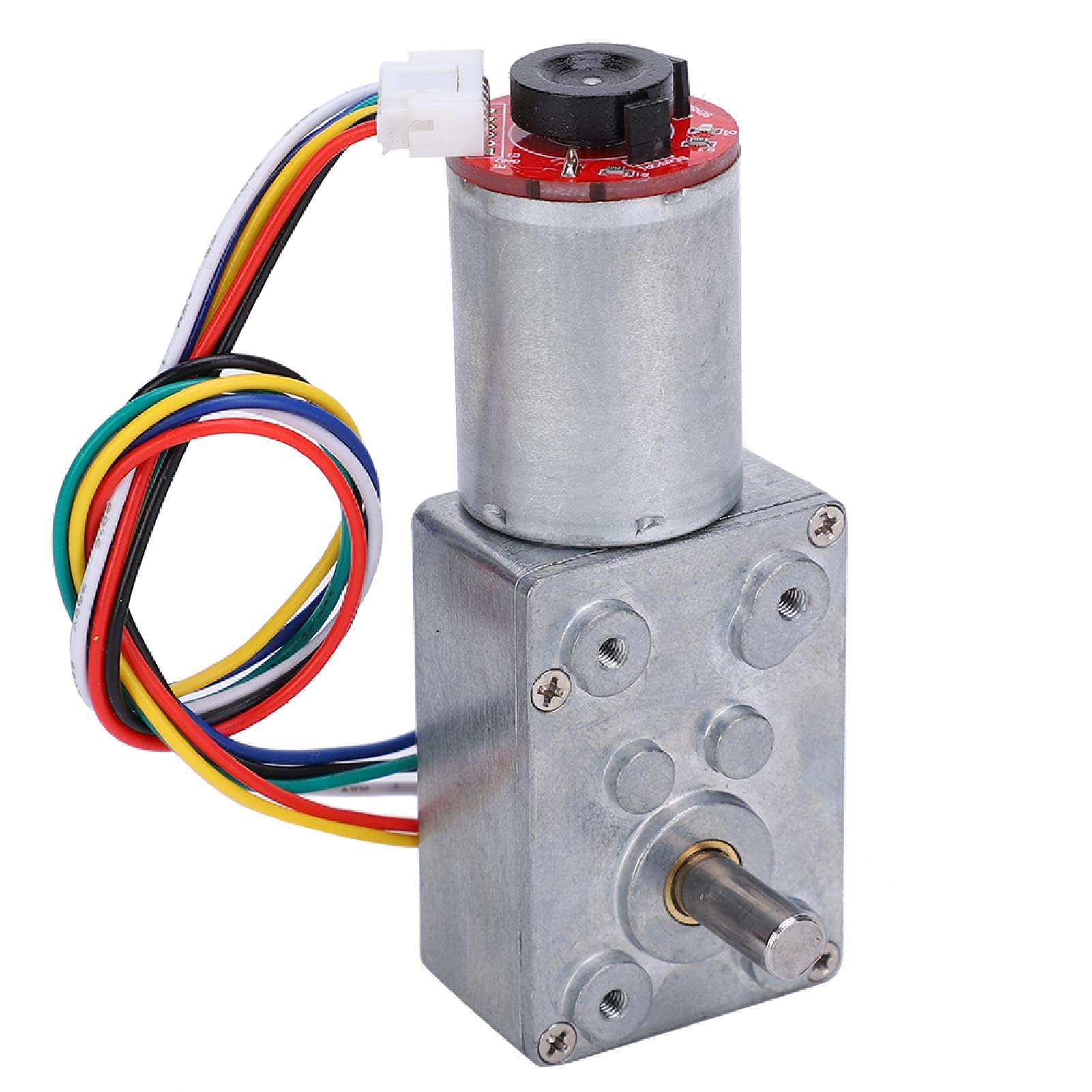

12V 40RPM DC Worm Gear Motor - Industrial Grade 20-60 RPM Gear Reduction Motor for Conveyors, Robotics & Automation Equipment

Feature:1. The gear have stable with large torsion, and strong wear‑resistance2. This gear motor possess low noise and high torsion, which will not bother others in work3. Two ‑ phase reduction gear motor equipped with encoder, which is powerful and practical4. DC speed encoder gear motor can support rotate and reverse, which achiceves work more accurately5. The product adopt copper, brass and zinc alloy material, sturdy and for a long service lifeSpec:Item Type: Gear MotorMaterial: Copper, brass, zinc alloyModel: JGY371Motor Type: Brush DC motorParameter: Voltage Reduction ratio No-load Load Block load Rotate speed Current Rotate speed Current Torsion Current Torsion 12V 1:380 20RPM ≤60MA 19RPM ≤170MA 1150g.cm ≤2.1A 25.4KG.CM 12V 1:147 40RPM ≤60MA 38RPM ≤170MA 980g.cm ≤2.1A 24.8KG.CM 12V 1:85 60RPM ≤60MA 65RPM ≤170MA 550g.cm ≤2.1A 21.8KG.CM Size:Approx. 46mm / 1.8inApprox. 33mm / 1.3inApprox. 32mm / 1.3inApprox. 18mm / 0.7inApprox. 15mm / 0.6inApprox. 85mm / 3.3inApprox. 24.8mm / 1inApprox. 24.5mm / 1inApprox. 2mm / 0.1inApprox. 14mm / 0.6inApprox. 12mm / 0.5inApprox. 5.5mm / 0.2inDiameter:Approx. 24mm / 0.9inApprox. 6mm / 0.2inPackage List:1 x Gear Motor

Two ‑ phase reduction gear motor equipped with encoder, which is powerful and practical

The product adopt copper, brass and zinc alloy material, sturdy and for a long service life

The gear have stable with large torsion, and strong wear‑resistance

This gear motor possess low noise and high torsion, which will not bother others in work

DC speed encoder gear motor can support rotate and reverse, which achiceves work more accurately
